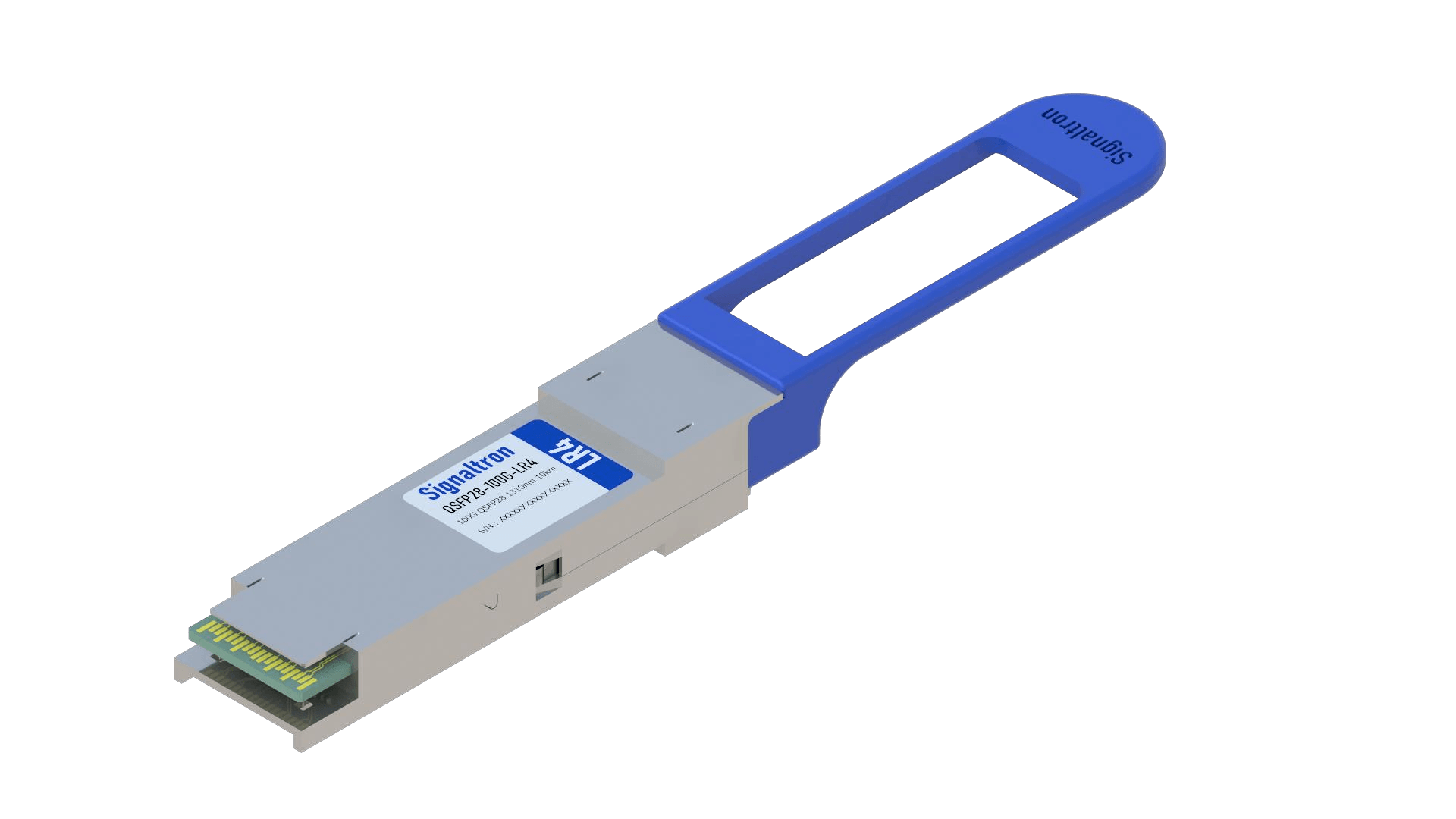

Signaltron's QSFP is designed for 100G Ethernet applications, capable of transmitting data up to 10 km over single-mode fiber. It is compatible with a wide range of infrastructure as it meets IEEE standards, including 802.3ba 100GBASE-LR4.

It is RoHS compliant and free, and supports a 103.1 Gb/s aggregate bit rate along with an I2C digital management interface. Its 4X25Gb/s NRZ interface helps to achieve a 100Gbps data rate by utilizing four parallel channels or lanes, each running at 25 Gbps. It also has built-in digital diagnostic functionality.

Features

• Hot-pluggable QSFP28 form factor
• Supports 103.1Gb/s aggregate bit rate
• Maximum link length of 10km on Single Mode Fiber (SMF)
• Duplex LC receptacles
• 4X25Gb/s NRZ interface
• DFB-based LAN-WDM transmitter
• Single 3.3V power supply
• Built-in digital diagnostic functionality
• I2C management interface
• Internal CDR circuits on both the transmitter and receiver channels
• Operating case temperature 0°C to 70°C
• RoHS compliant (lead free)

Applications

• IEEE 802.3ba 100GBASE-LR4
