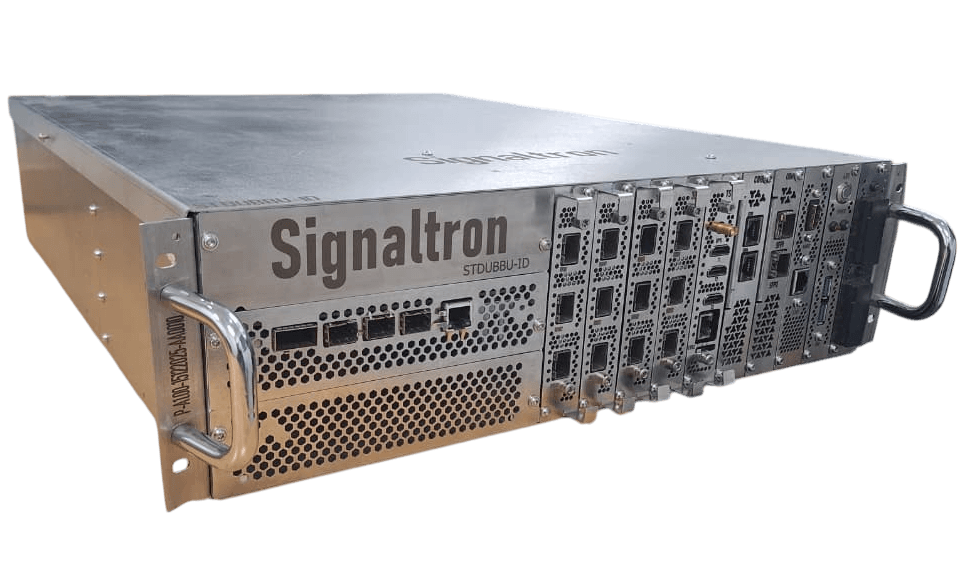

STDU-ID is a DU that can support up to 3 sectors of 5G in a single compact rack enclosure. The solution uses expandable modules that make it highly versatile and flexible for operators to handle. It is scalable with slots for up to 8 PCIe-based 4G baseband modules, 3 PCIe-based 5G baseband modules and 1 Timing synchronisation module. The 5G baseband module is based on FPGA based hardware platform for complete hardware L1 implementation.

Why Signaltron 5G-NR DU?

Perfect for macro coverage, capacity expansions and rural clusters with distributed RRHs.

• Flexible duplexing: Supports TDD/FDD to match spectrum strategy.
• RRH/RU support: eCPRI/CPRI interface.
• Massive MIMO antenna support: 16T16R,32T32R,64T64R supports
• 16 Layer Beam forming:Massive MIMO and beamforming 16-Layer support on both DL and UL
• Throughput: DL upto 3Gbps per sector and UL upto 1Gbps per sector
• Lower total cost: Share baseband across sectors, reduce site hardware duplication, and streamline software lifecycle management.
• Customisation:Customisable to Required Power and Frequency
• Weight: 12Kgs

Applications

• Deployment: Central office, shelter, hub site, or data-center rack with fiber fronthaul to RRHs on towers, rooftops, poles, or trackside masts; configurable FDD/TDD bands.
